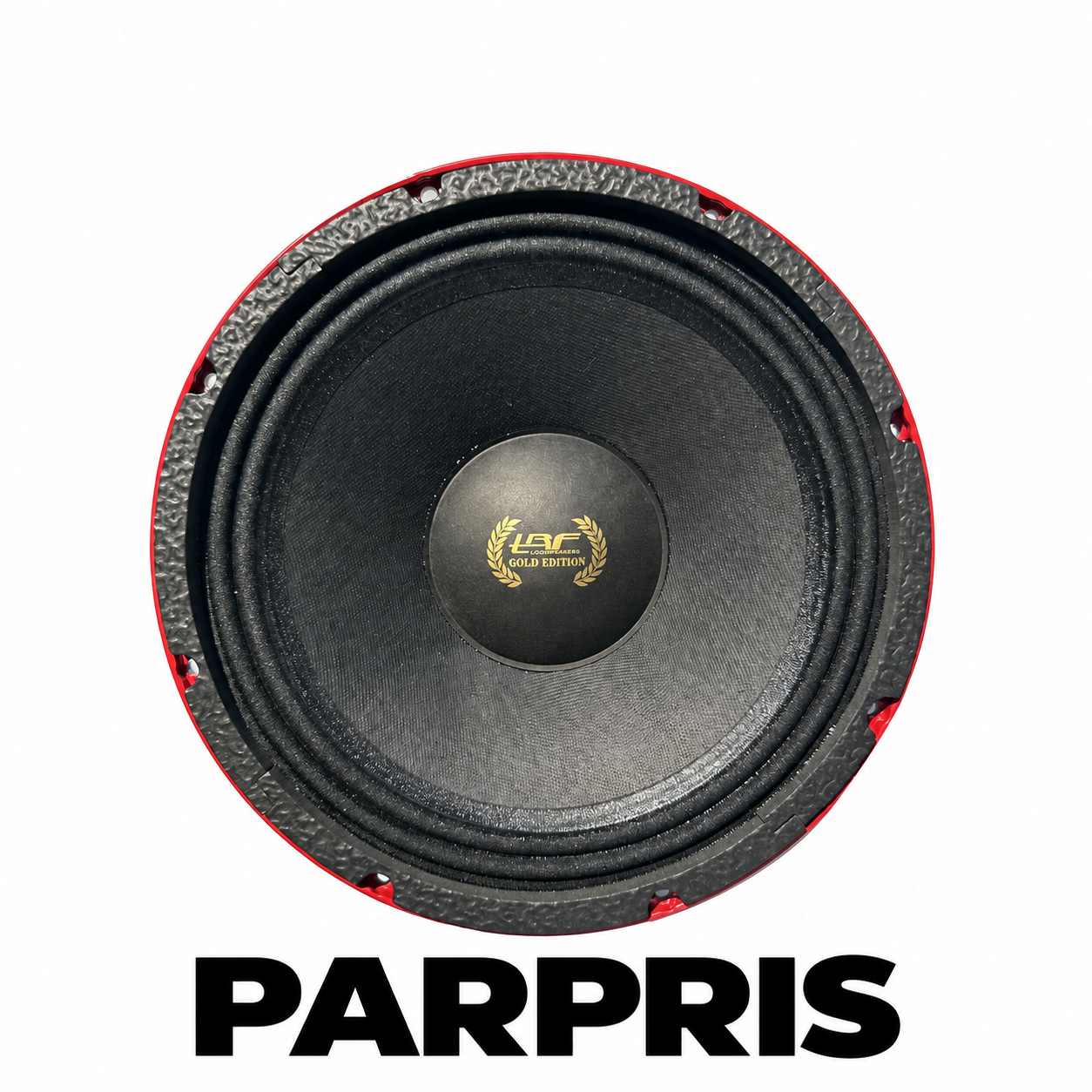

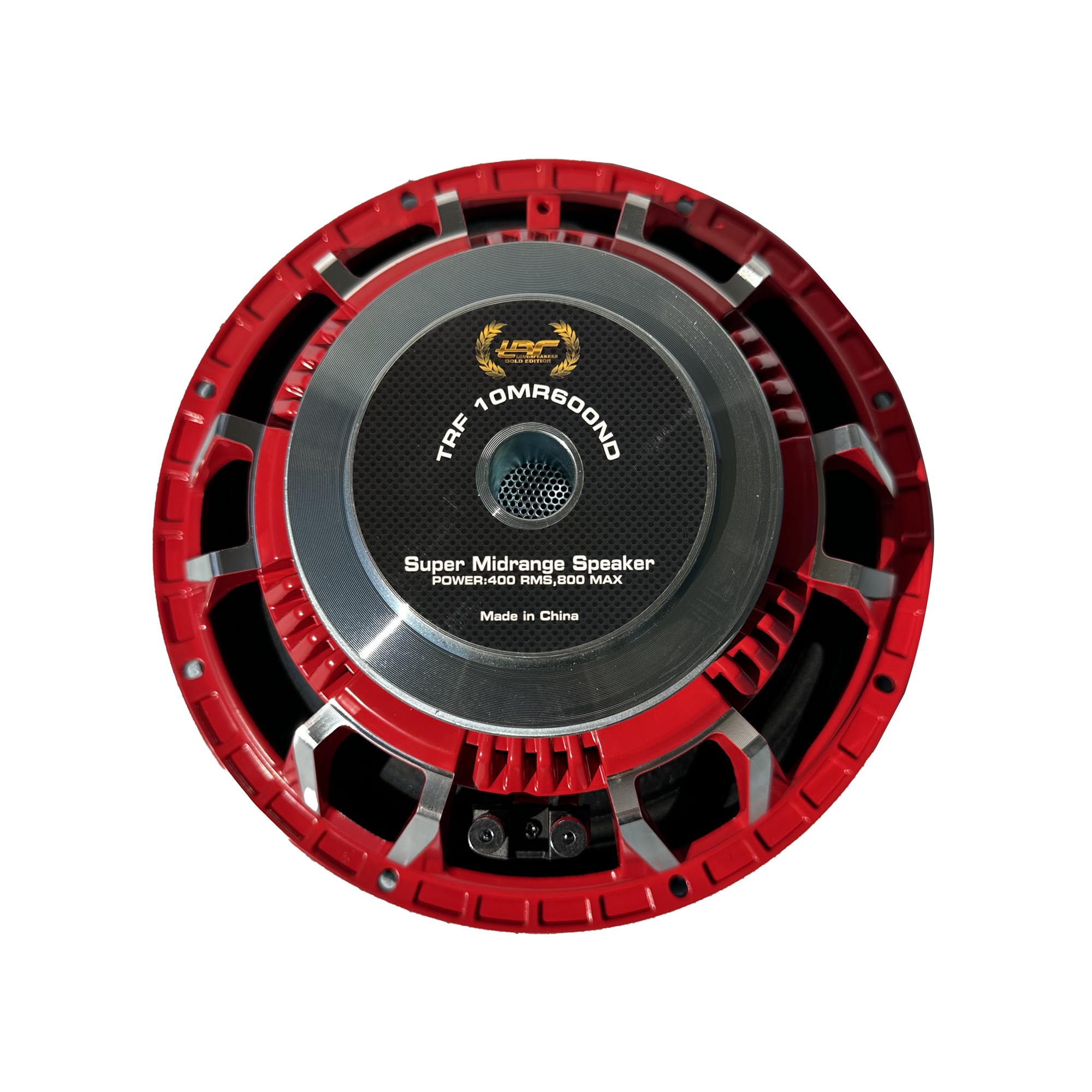

TRF 10MR600ND
4 399 SEK
MODEL: TRF 10MR600ND
Nominal Diameter:10"(254mm)
Max Power Handling:800W
RMS Power Handling:400W
Frequency Response:80Hz-6.5KHZ
Nominal impedance:4Ω
Sensitivity:100.5 dB
Magnet:Neodymium
Voice Coil Diameter:2.5"
Voice coil Wire:CCAW
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: 10MR600ND

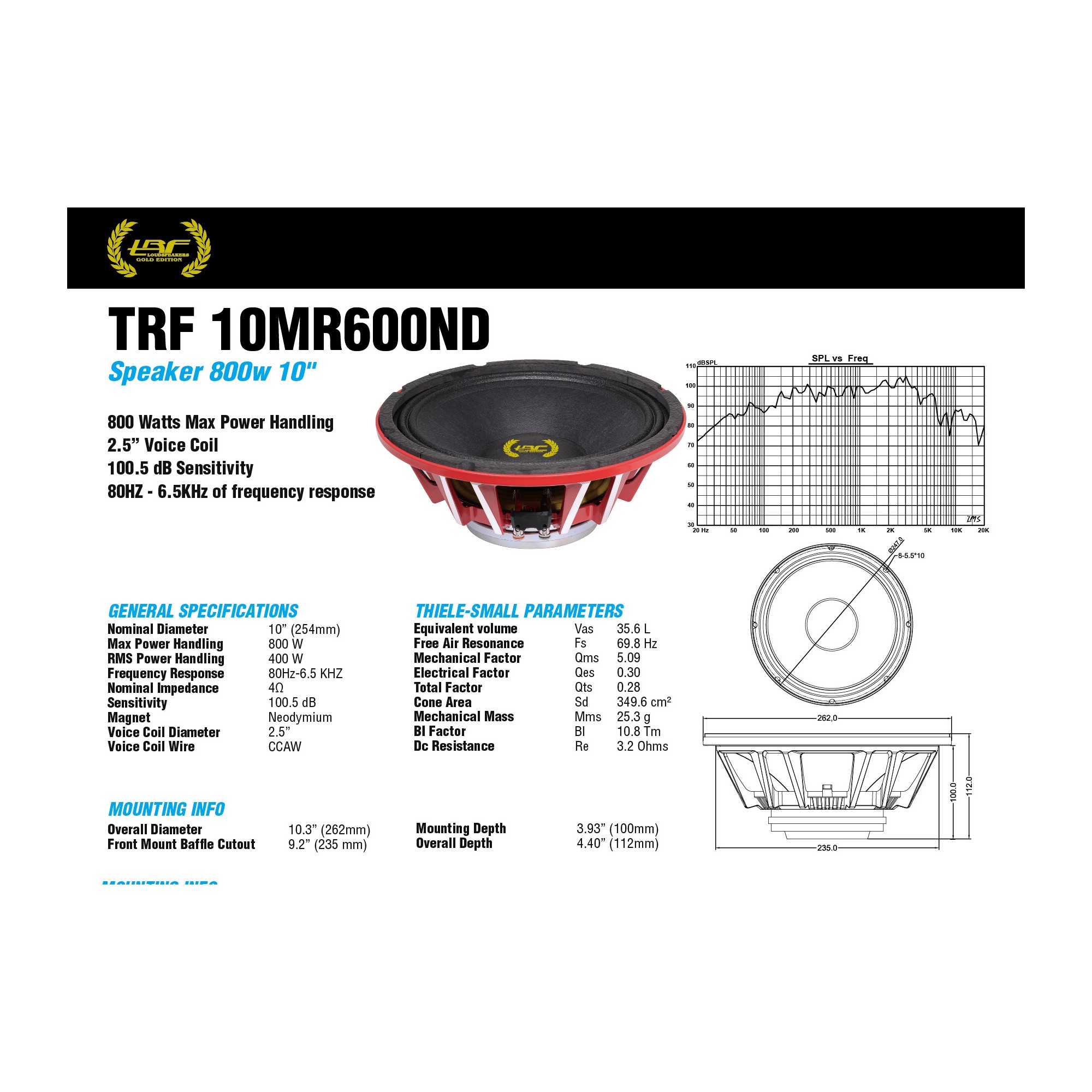

MODEL: TRF 10MR600ND
Nominal Diameter:10"(254mm)
Max Power Handling:800W
RMS Power Handling:400W
Frequency Response:80Hz-6.5KHZ
Nominal impedance:4Ω
Sensitivity:100.5 dB
Magnet:Neodymium
Voice Coil Diameter:2.5"
Voice coil Wire:CCAW
Equivalent volume:Vas 35.6 L
Free Air Resonance:Fs 69.8Hz
Mechanical Factor:Qms 5.09
Electrical Factor:Qes 0.30
Total Factor:Qts:0.28
Cone Area:Sd 349.6cm
Mechanical Mass:Mms 25.3g
BI Factor:BI 10.8Tm
Dc Resistance:Re 3.2 Ohms
Overall Diameter:10.3"(262mm)
Front Mount Baffle Cutout:9.2"(235mm)
Mounting Depth:3.93"(100mm)
Overall Depth:4.40"(112mm)
