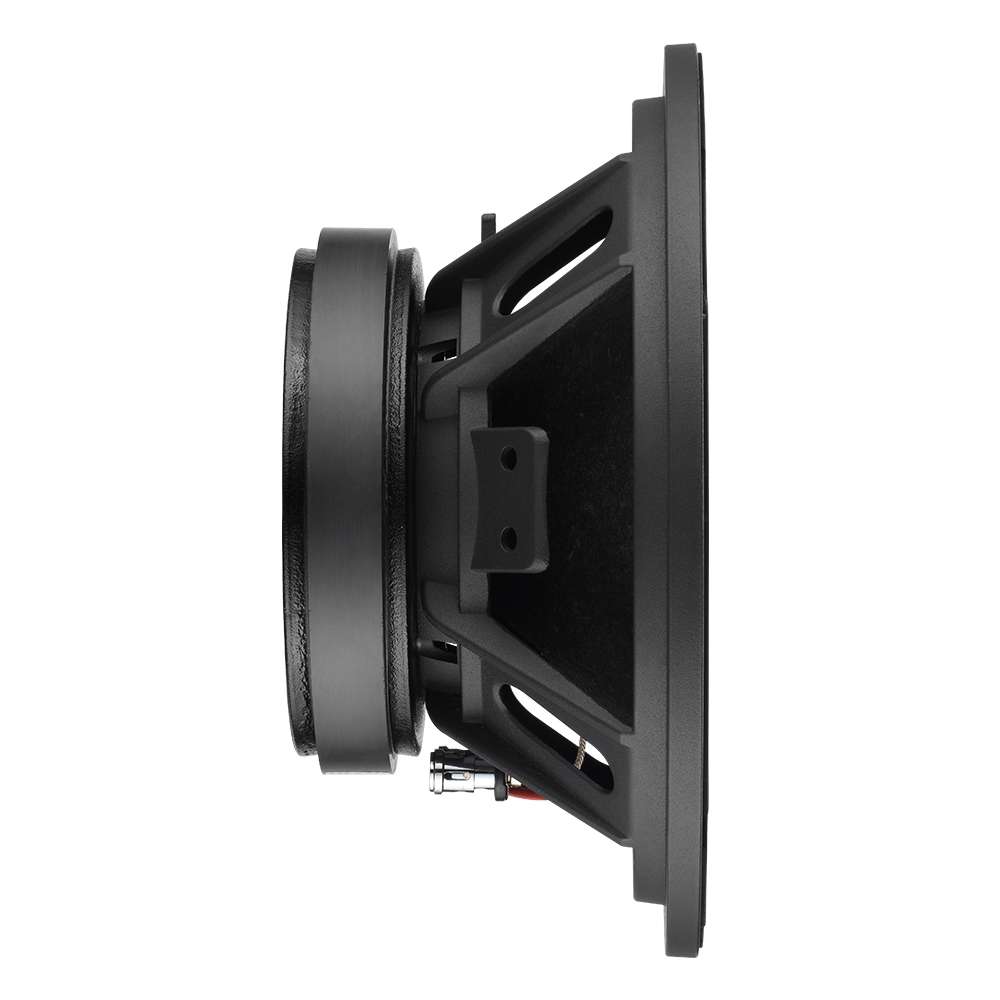

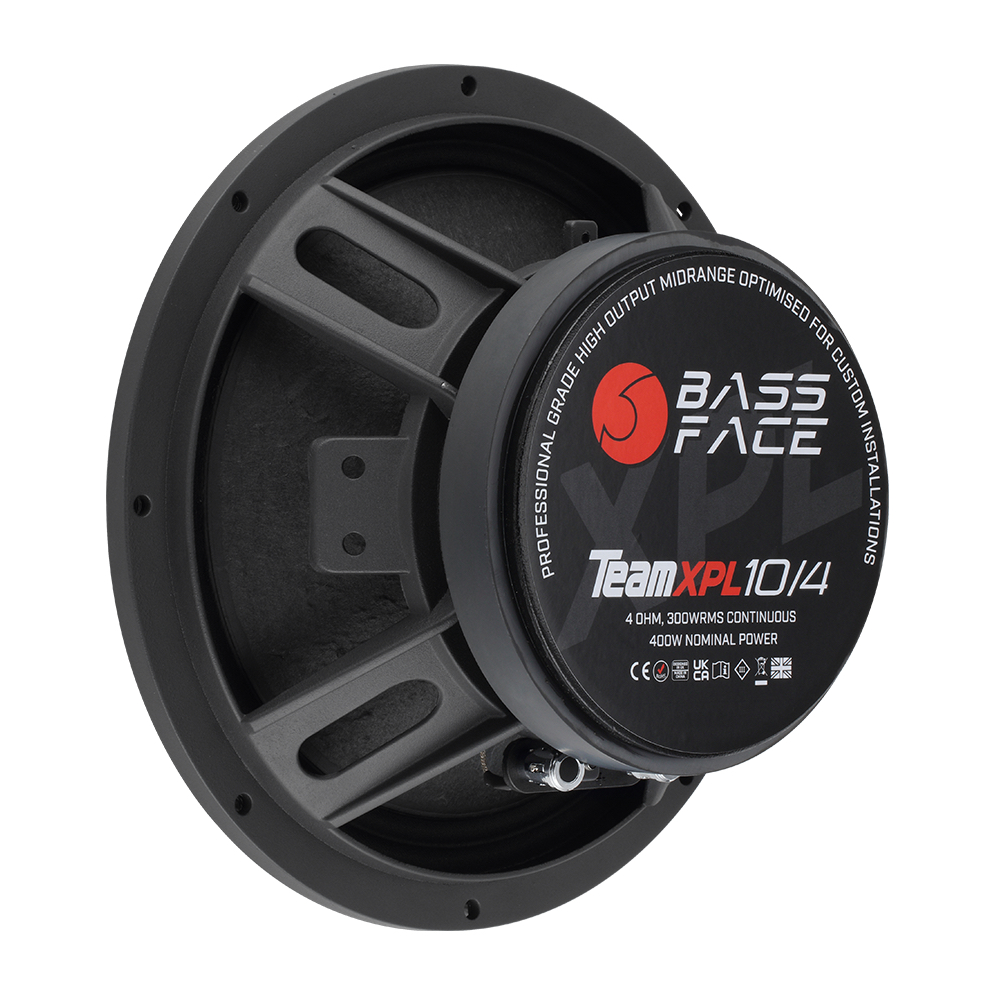

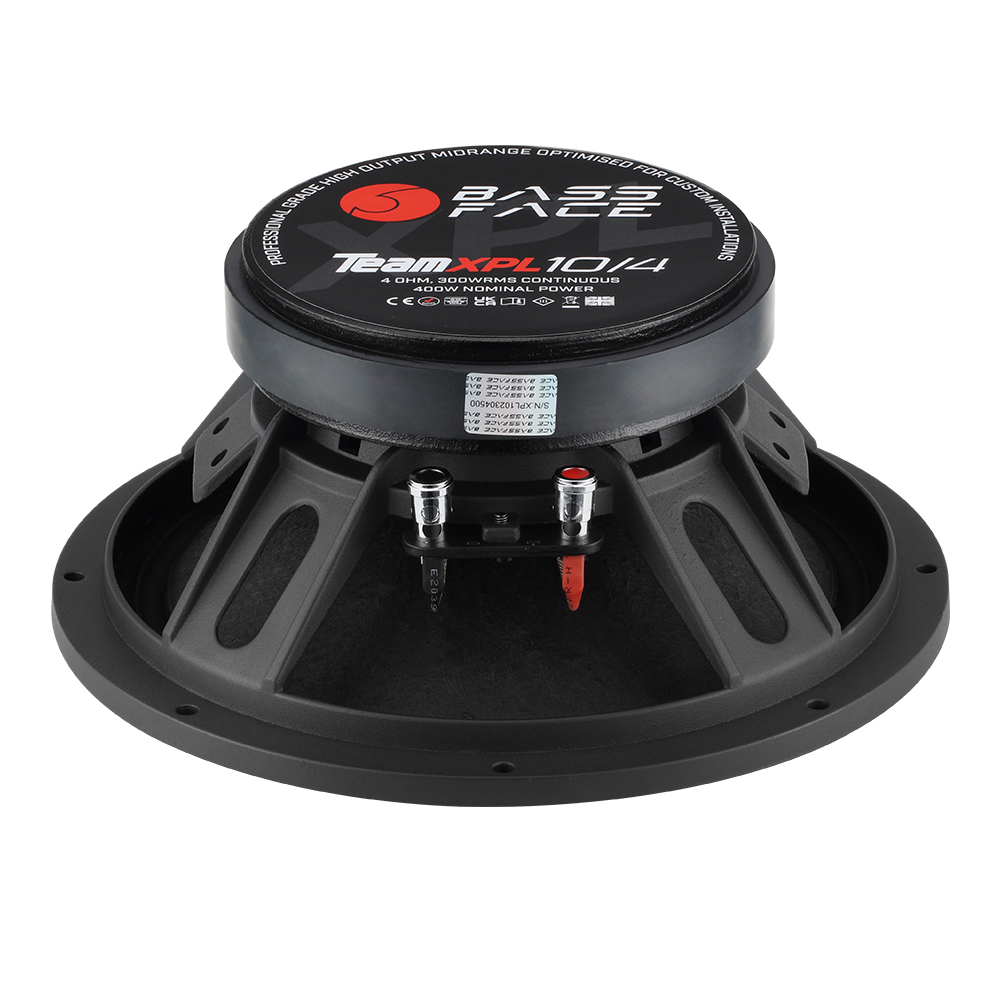

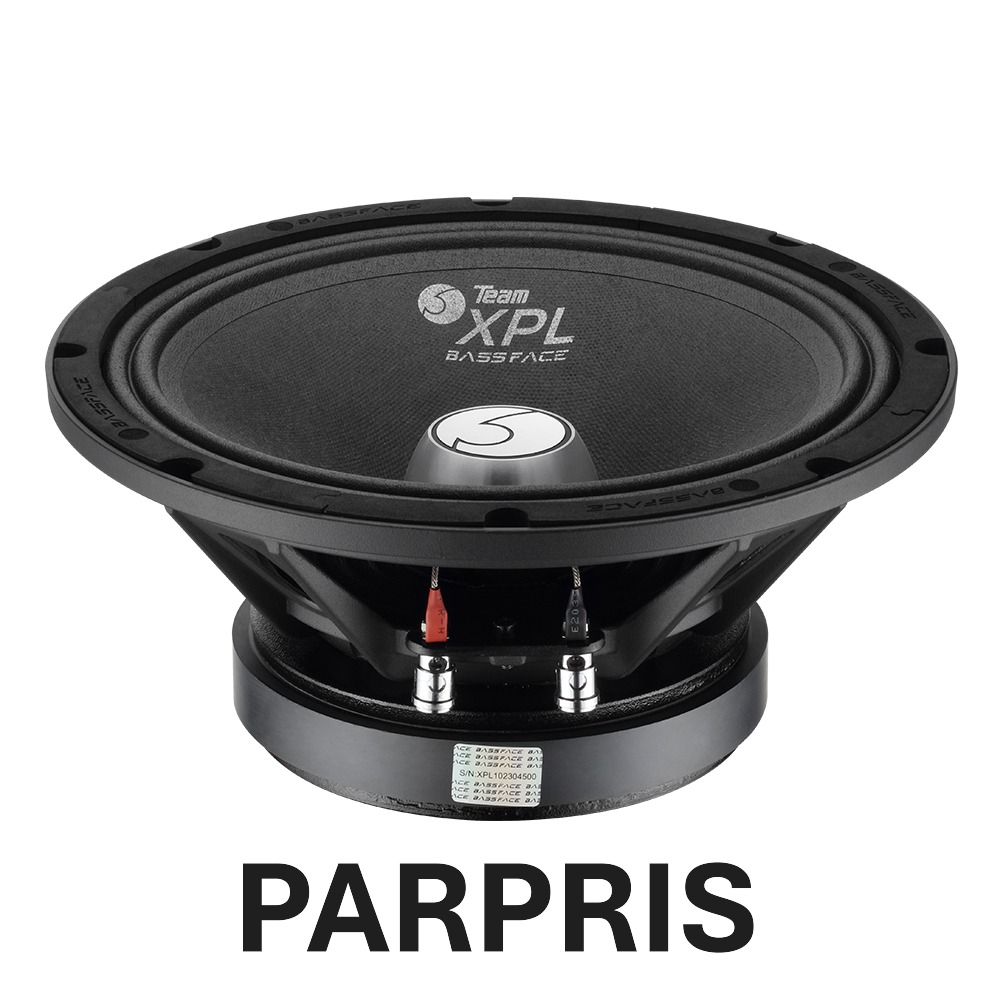

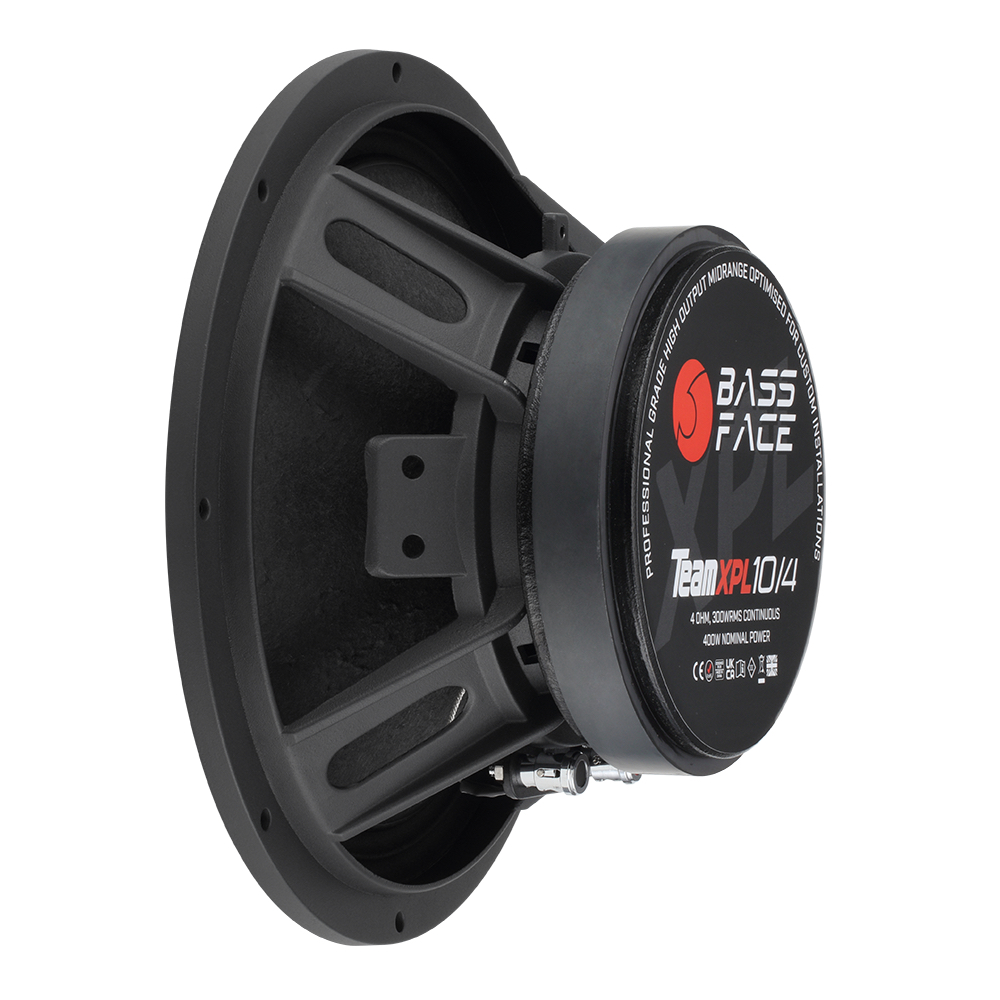

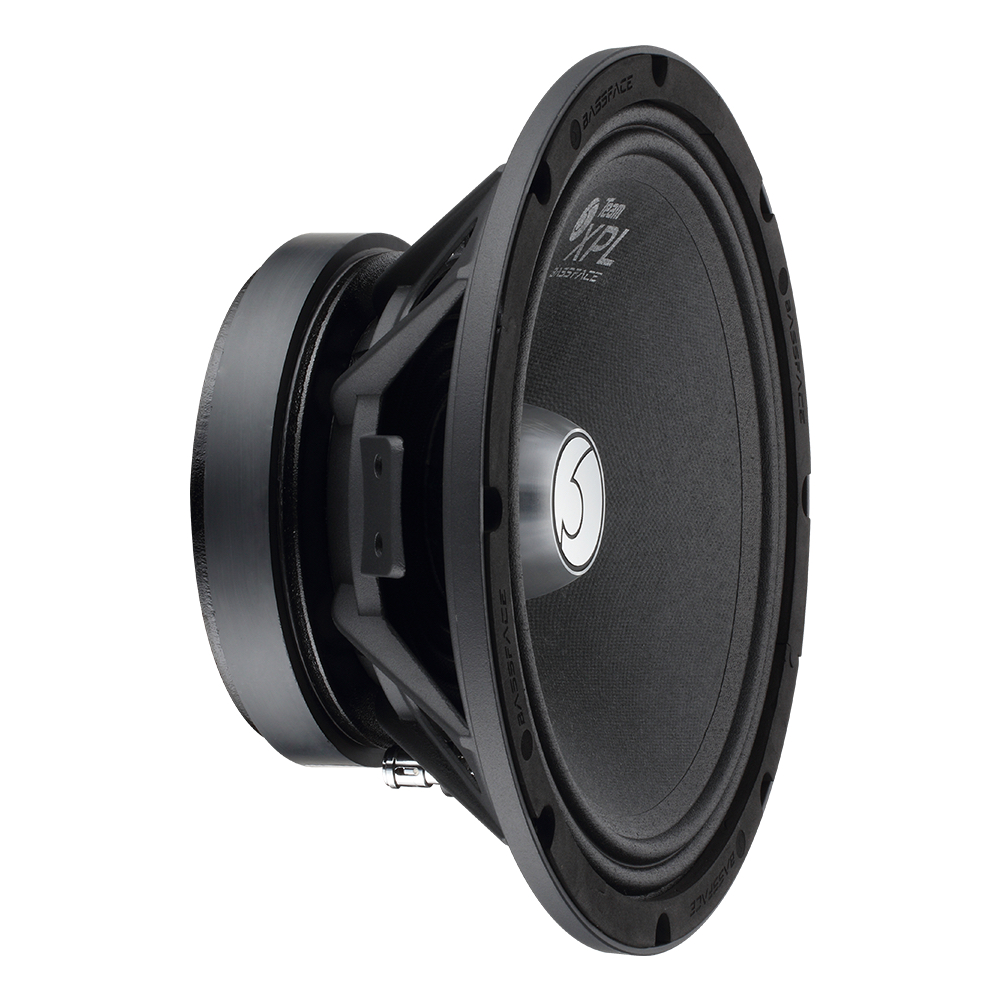

BASSFACE Team XPL10/4

-250mm / 10" High Performance 400w RMS Midrange Driver -Lightweight Non Pressed Paper Cone & Dual Roll Cloth Surround -2.5" Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider -High Strength Y35 Motor With 53.8 Oz Magnet -Copper Shorting Ring For Smoother Load Response -Carefully Selected Super Rigid Cast Basket -Recommended Frequency Range: 80>3000 Hz -CNC Machined Phase Plug Optimises Response Curve -Full Documentation To Assist With Projects Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover): 400 Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD): 300 Overall Diameter (mm): 261 Magnet Diameter (mm) (Including Magnet Protector Where Applicable): 156 Installation Cut-Out Diameter (mm): 223 Overall Depth (mm): 116 Mounting Depth (mm): 107 Front Protrusion From Mounting Plane (mm): 9 System Frequency Response (Hz): 80>3000 Impedance (Ohm) (Nominal): 4 Sensitivity (db/1Wm): 96.7 Total Magnet Weight (Oz): 53.8 Magnet Size (mm): 156x20 Magnet Type: Y35 Magnet Qty: 1 Top Plate thickness (mm): 8 Back Plate Thickness (mm): 8 Voice Coil Former Spec: Kapton Voice Coil Type: CCA Round Wire Voice Coil External Diameter (mm): 62.95 Voice Coil Internal Diameter (mm): 60.5 Voice Coil Winding Height (mm): 15 Voice Coil Winding (Layers): 2 Cone Type: Non Pressed Paper Spider Compliance: Medium Spider Type: Linear Spider Diameter (mm): 130 Spider Design Single Surround: Dual Roll Surround Material: Cloth Tinsel Wire: Single Terminal: Push
