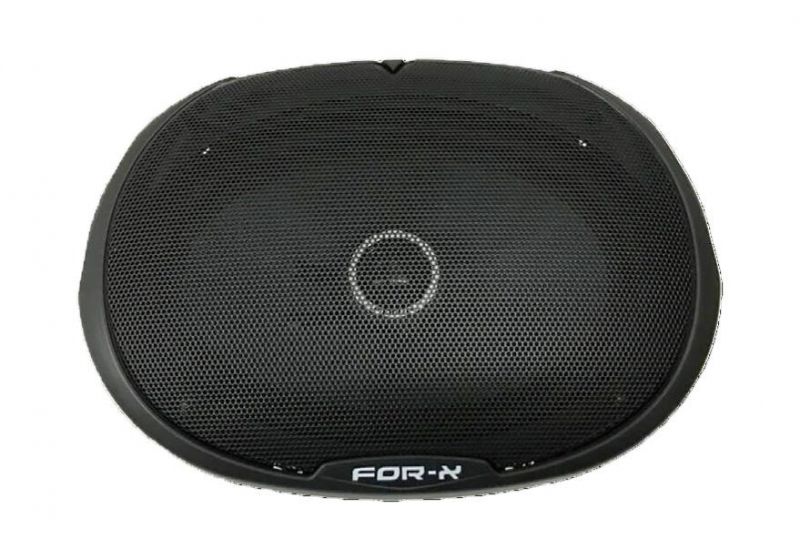

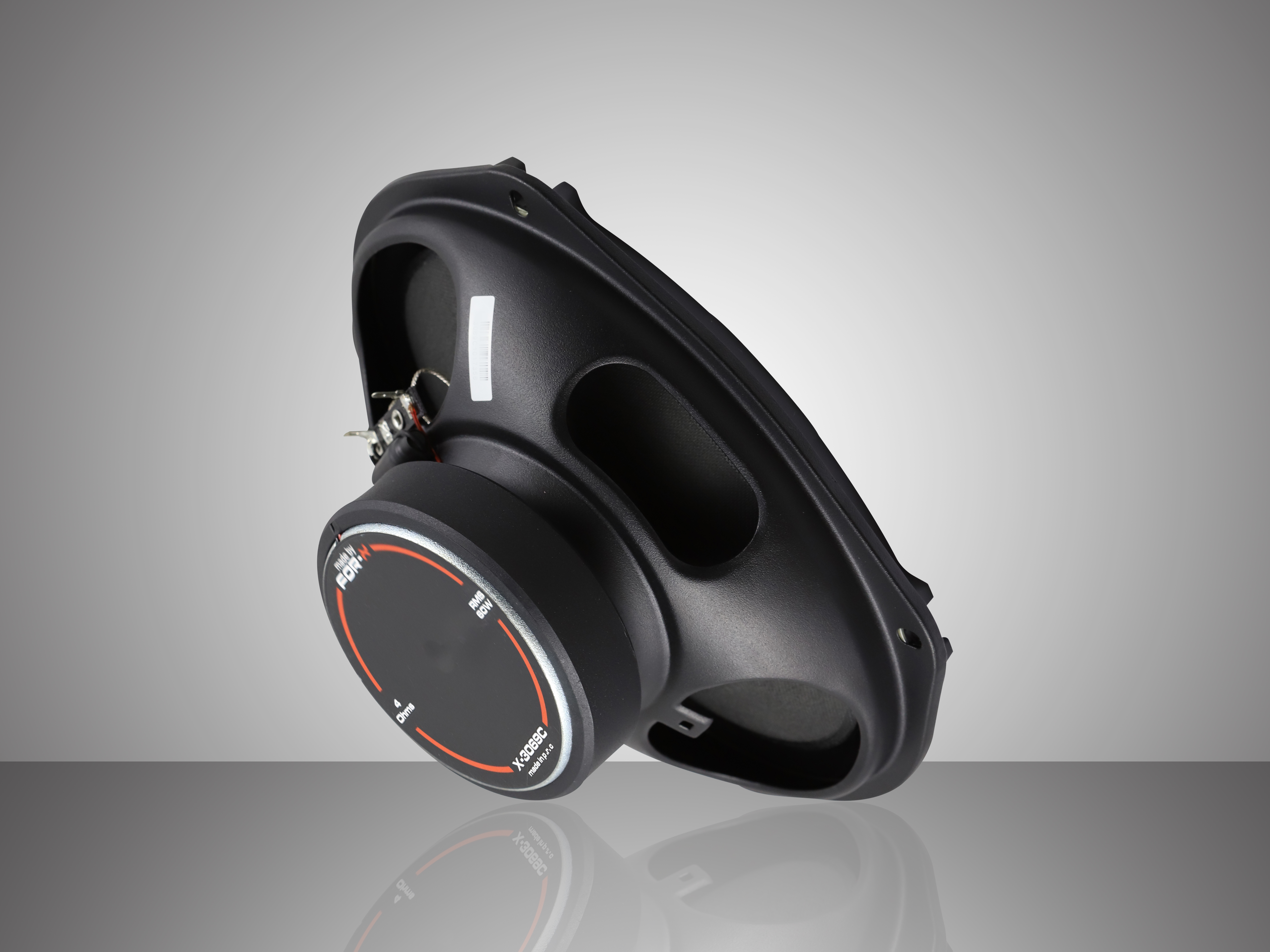

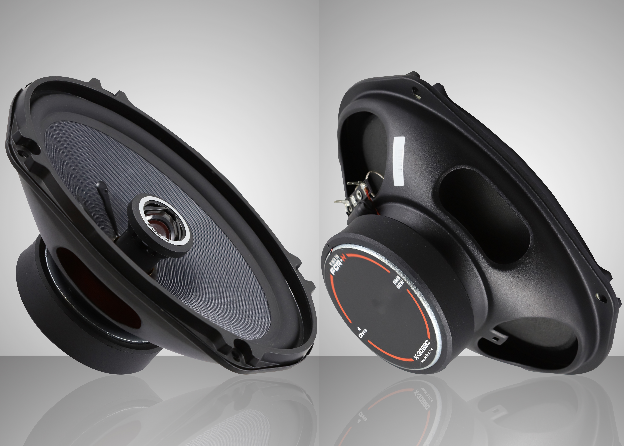

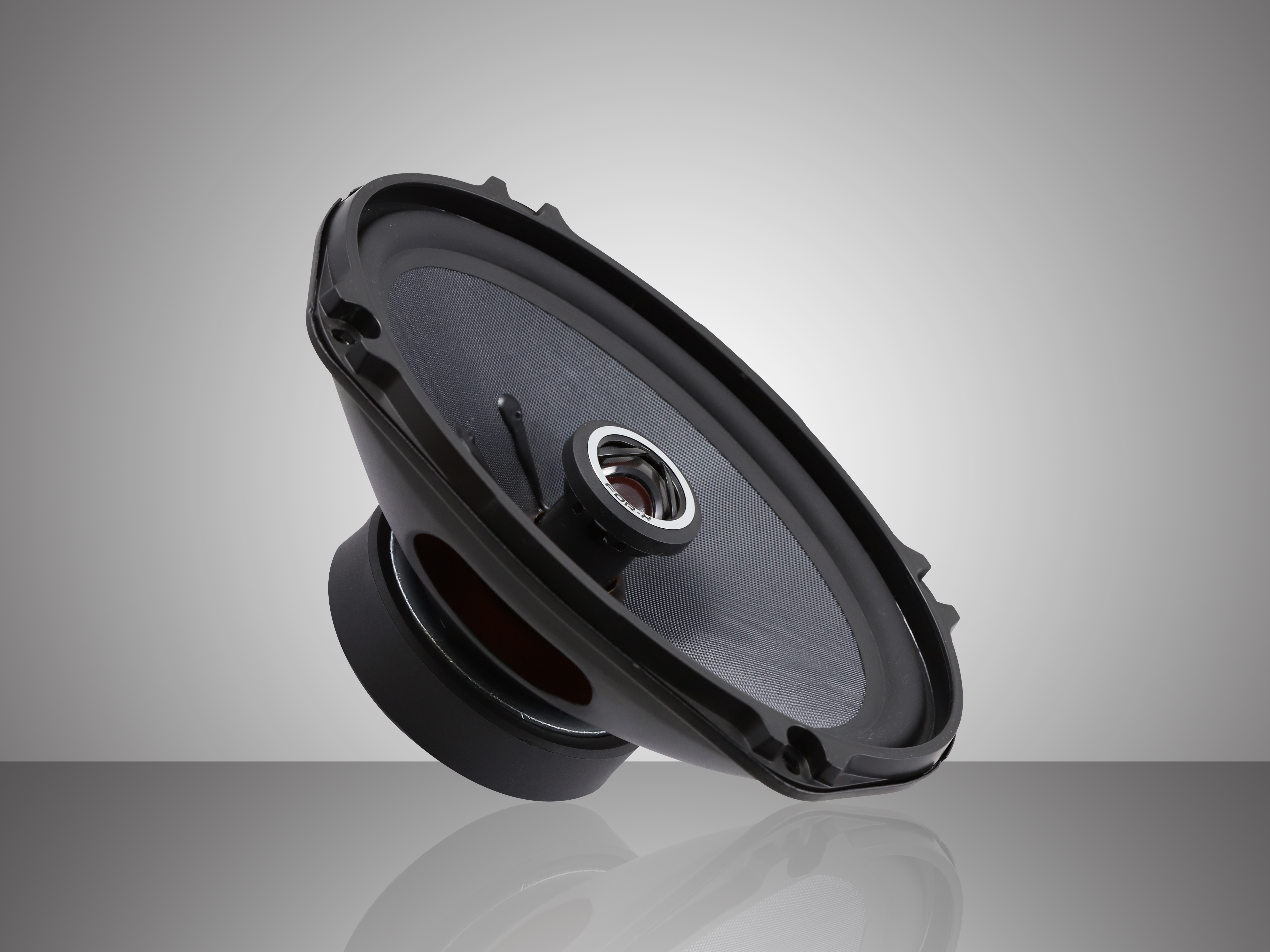

FOR-X X-3069C

General Data Overall Dimensions 238mm*165mm*110mm Nominal Power Handling 60 W Transient Power 10ms 120 W Sensitivity 91 db Frequency Response 48-20 kHz Cone Material Woofer: Fiberglass / Tweeter: Silk Net Weight 1.6 kg Electrical Data Nominal Impedence 4 ohm DC Resistance Woofer: 3.2 ohm Tweeter: 3.6 ohm Voice Coil and Magnet Parameters Voice Coil Diameter Woofer: 30.5 mm / Tweeter 25.4 mm Voice Coil Height Woofer: 11.7 mm / Tweeter 1.5 mm HE magnetic Gap Height Woofer: 6 mm / Tweeter: 2 mm Max. Linear Excursion 2.85 mm Voice Coil bobbin Kapton Voice Coil Wire Woofer: Copper / Tweeter: CCAW Number of Layers 2L Magnet System Type Woofer: High Flux Ferrite / Tweeter: Neodymium BL Product 6.09 T-S Parameters Suspension Compliance 0.55 Cms Mechanical Q Factor 8.85 Qms Electrical Q Factor 0.54 Qes Total Q Factor 0.51 Qts Moving Mass 19.7 Mms Eq.Cas AIR Load 37.19 Vas Liter Resonant Frequency 56 Fs Effective Piston Area 217 cm^2
