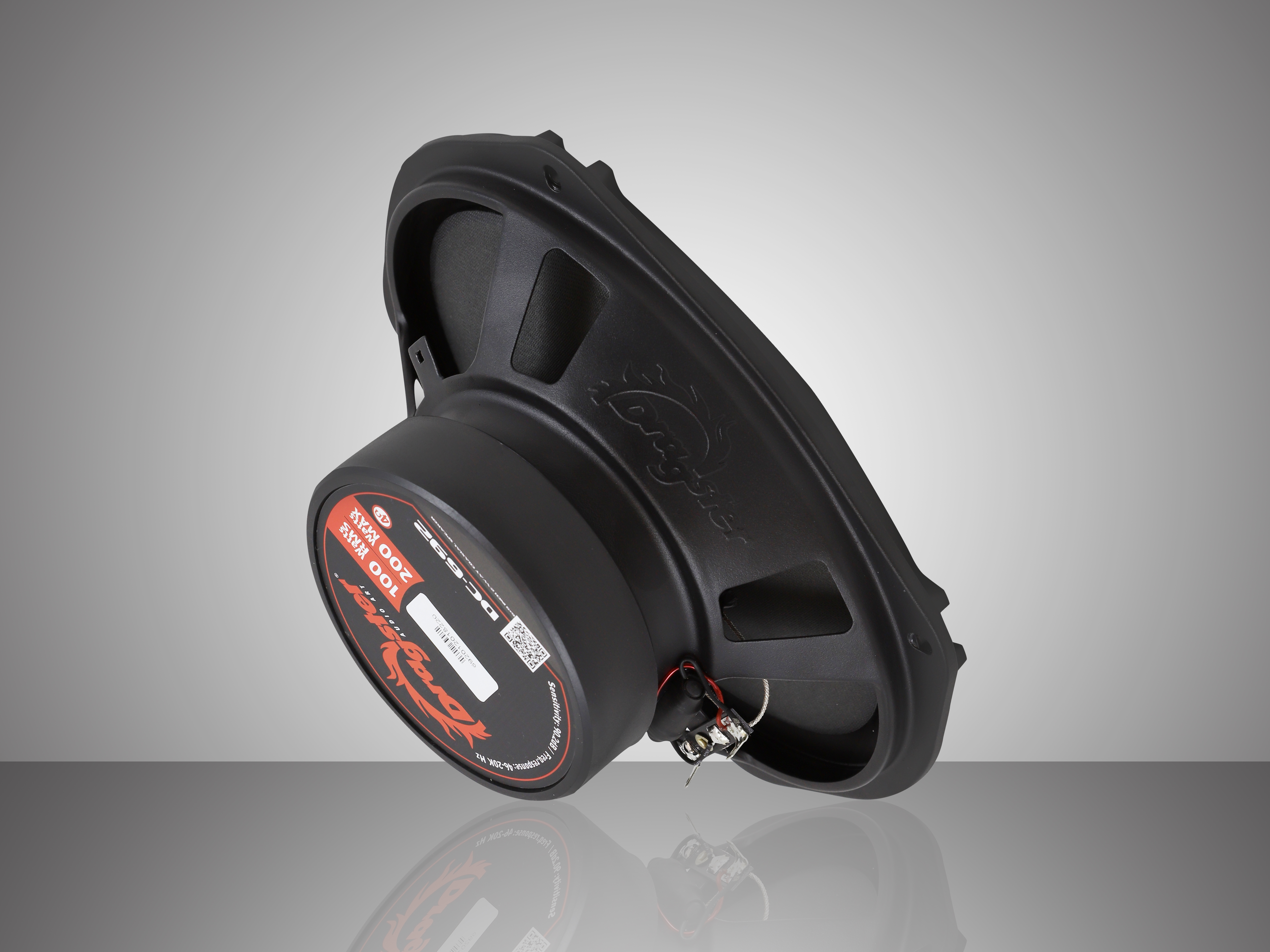

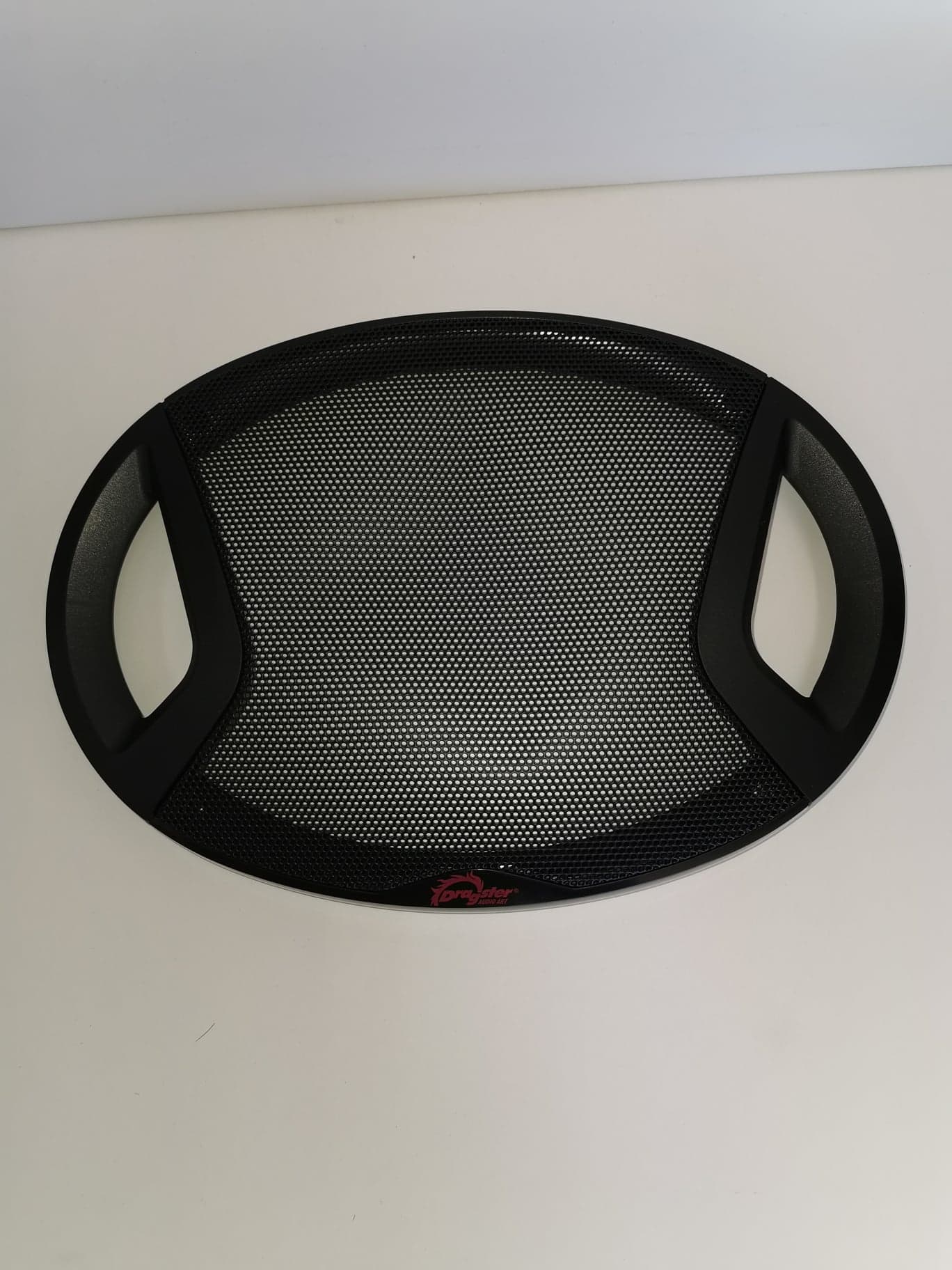

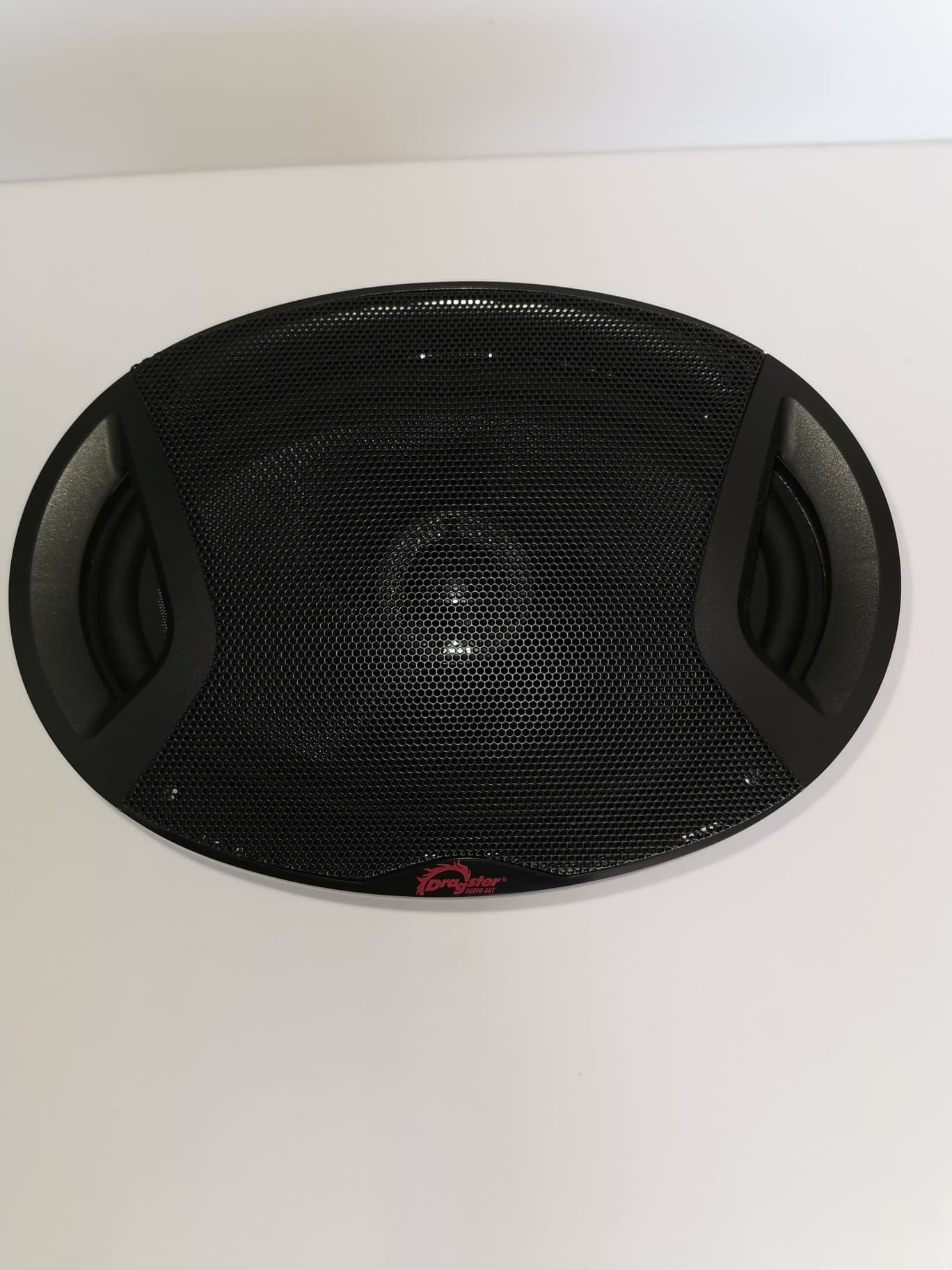

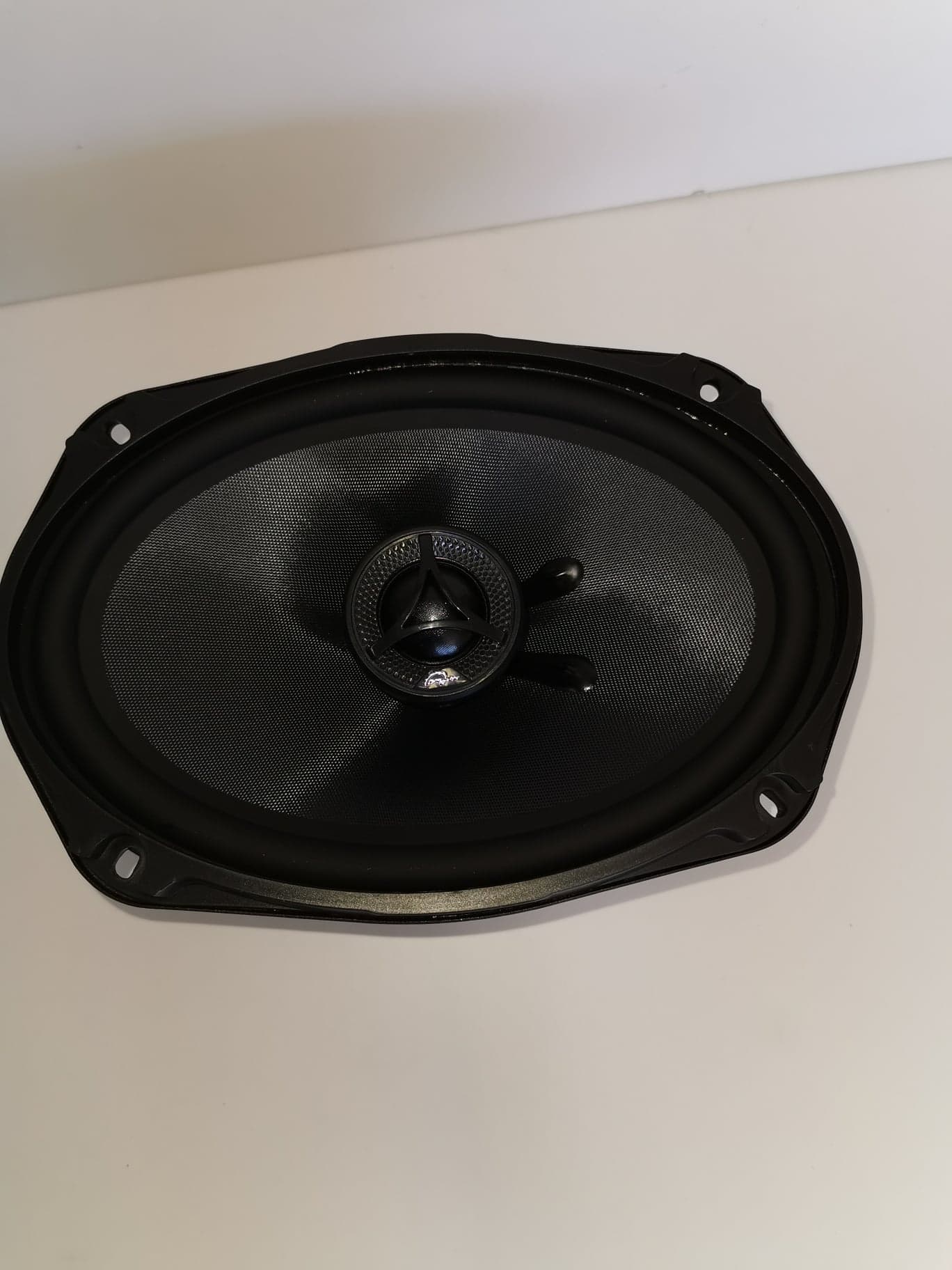

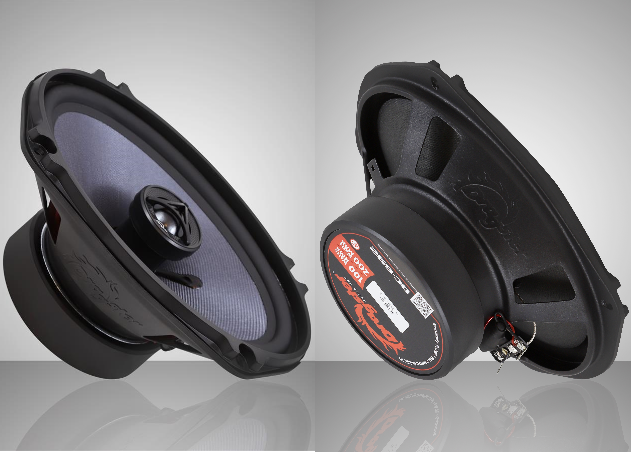

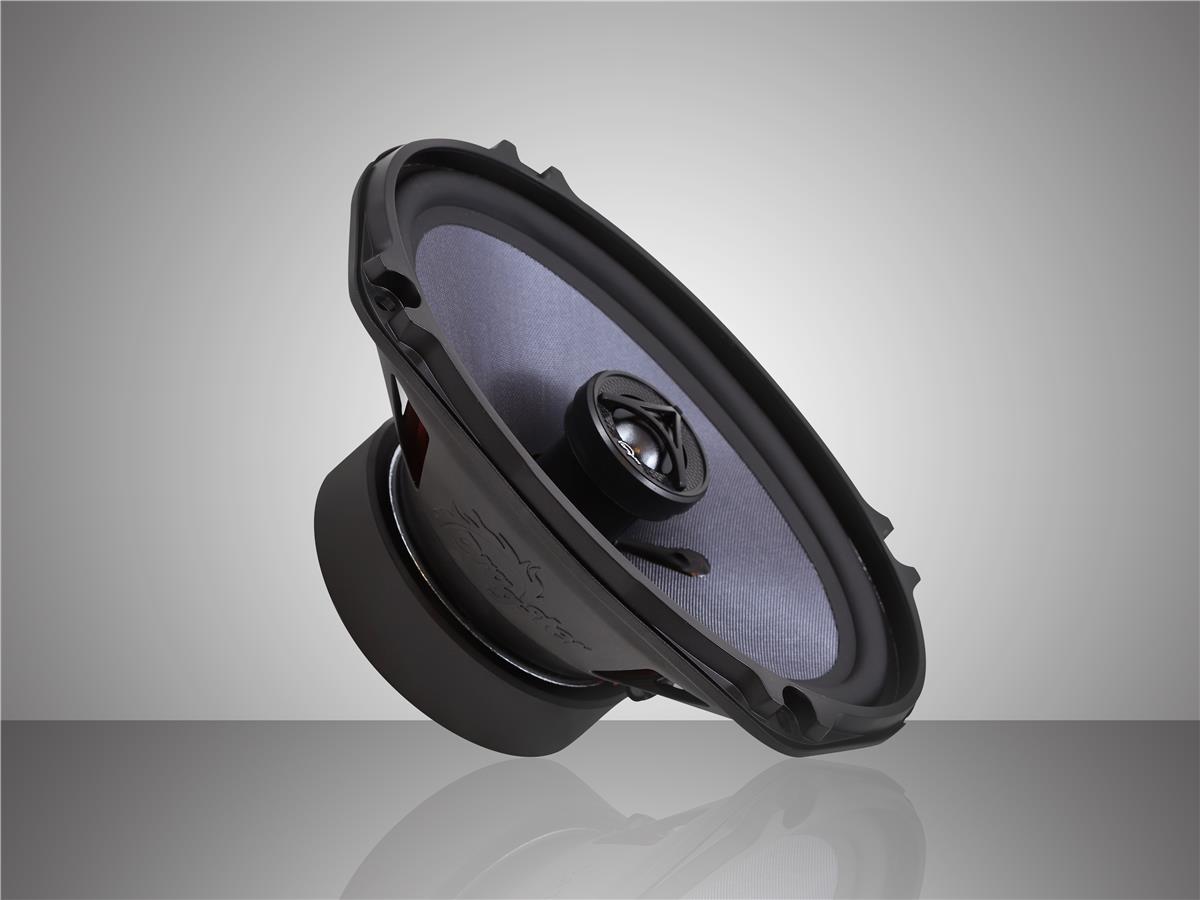

DRAGSTER DC-692
1 899 SEK
Overall Dimensions 237*163*104 mm
Nominal Power Handling 90 W
Transient Power 10ms 180 W
Sensitivity 91.2 dB
Frequency Response 46-20K Hz
Cone Material Fiberglass Silk
Net Weight 2.07 kg
Mounting Depth 89mm
Par
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DC-692
Electrical Data
Nominal Impedance 4 Ohm
DC Resistance 3.2 Ohm
Voice Coil Diameter 38,6 28,3 mm
Voice Coil Height 15 1,8mm
HE Magnetic Gap Height 6 2mm
Max.Linear Excursion 4,5 mm
Voice Coil bobbin Kapton Aluminum
Voice Coil Wire Copper CCAW Copper
Number Of Layers 2 layers
Magnet System Type Hi. Flx Ferr. Neodymium
BL Product 7,14
T-S Parameters
Suspension Compliance Cms 0.543
Mechanical Q Factor Qms 5.38
Electrical Q Factor Qes 0.39
Total Q Factor Qts 0.37
Moving Mass Mms 21,8
Eq.Cas Air Load( liters) VAS 24,8Liter
Resonant Frequency Fs 46 Hz
Effective Piston Area SD 212,5 cm²
