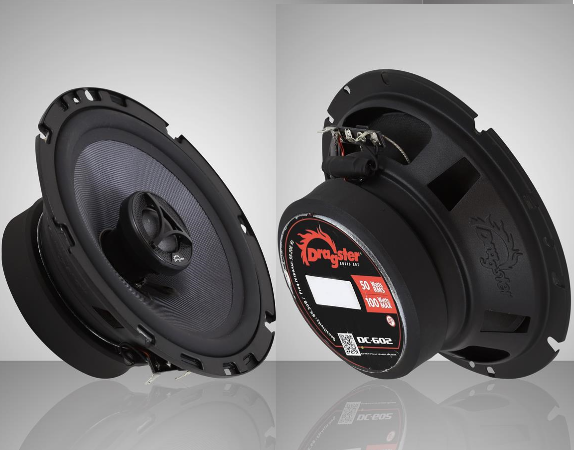

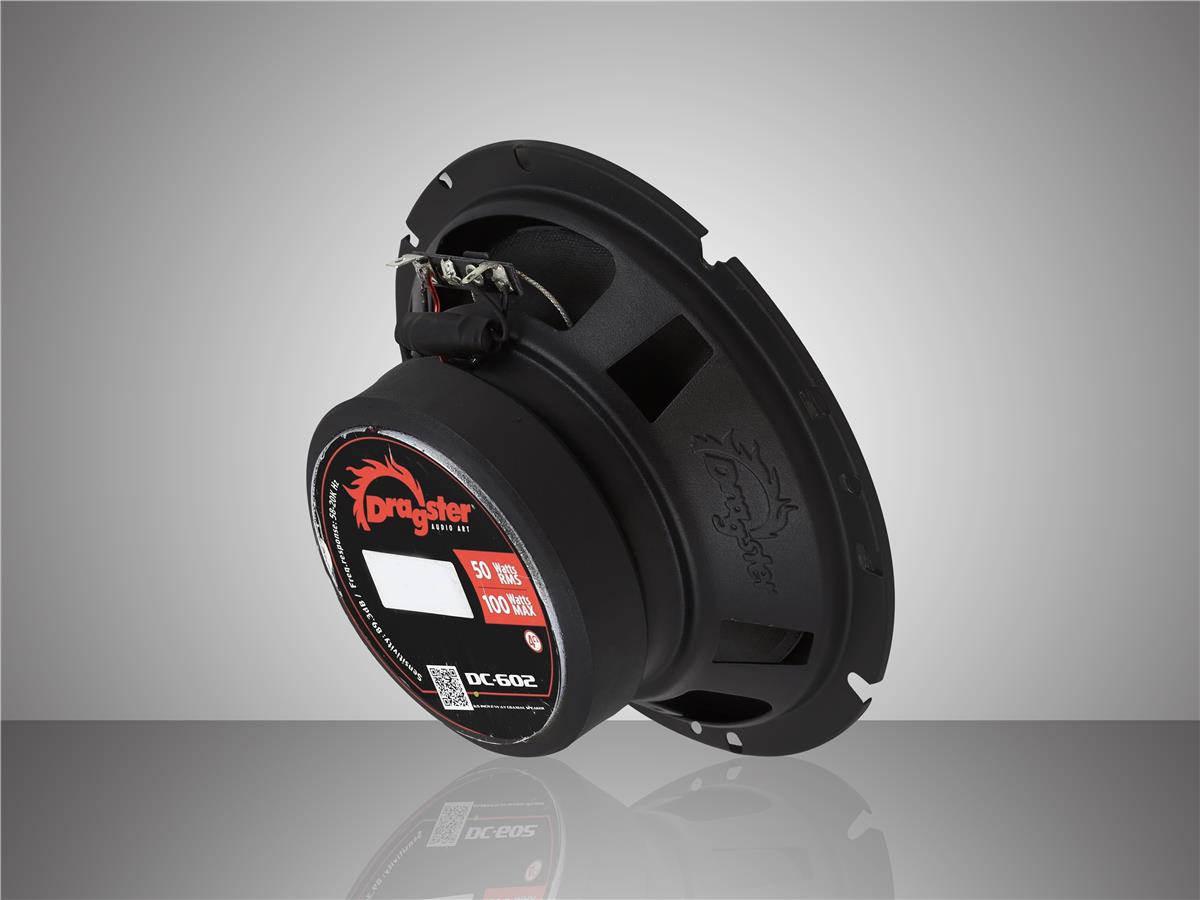

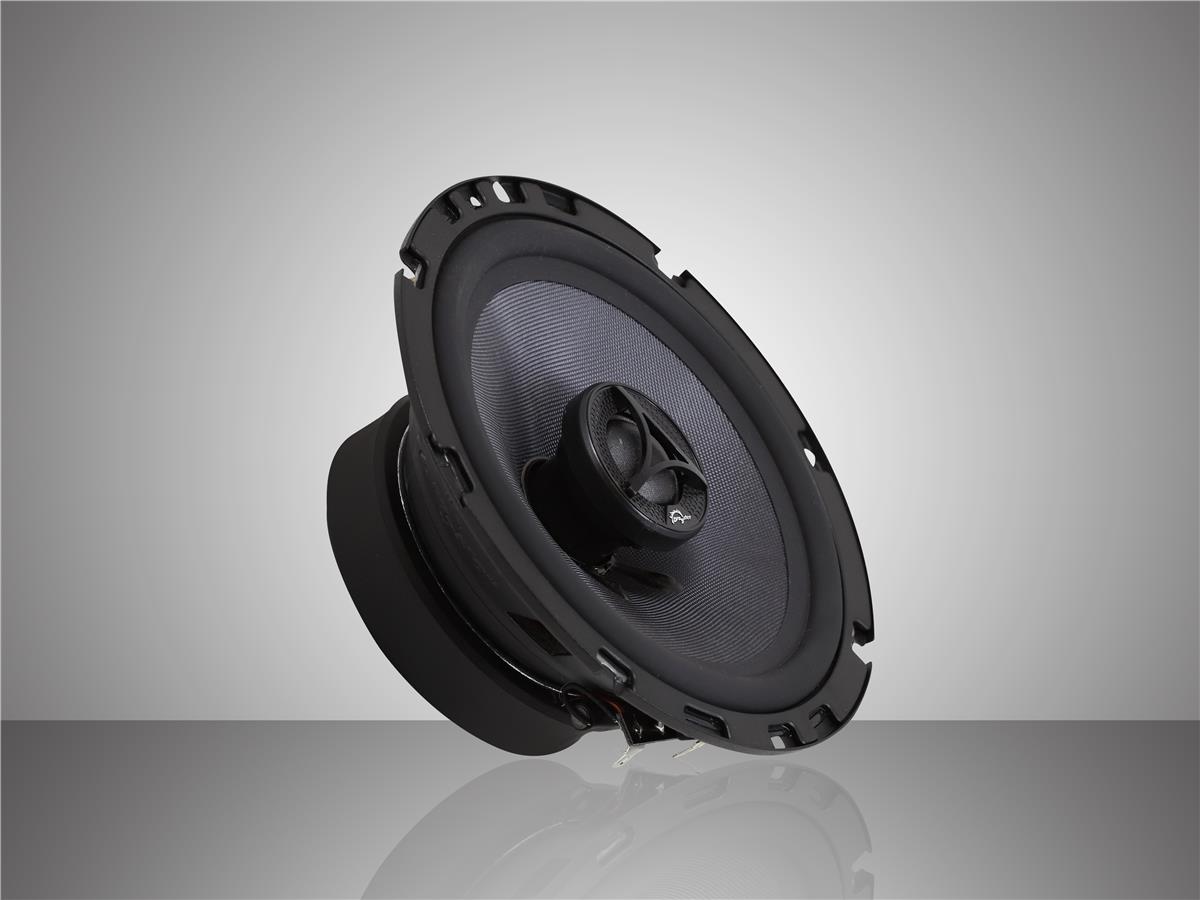

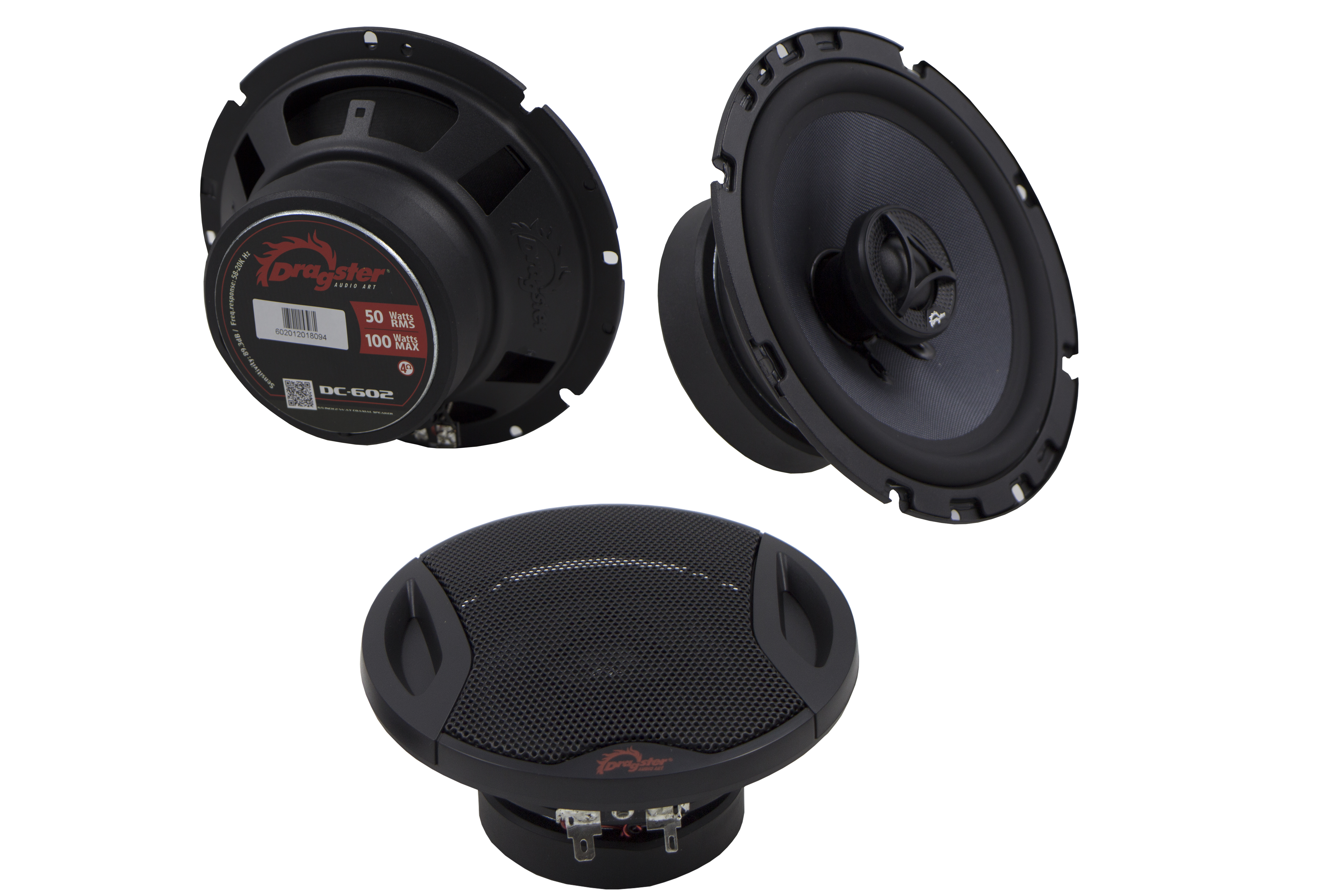

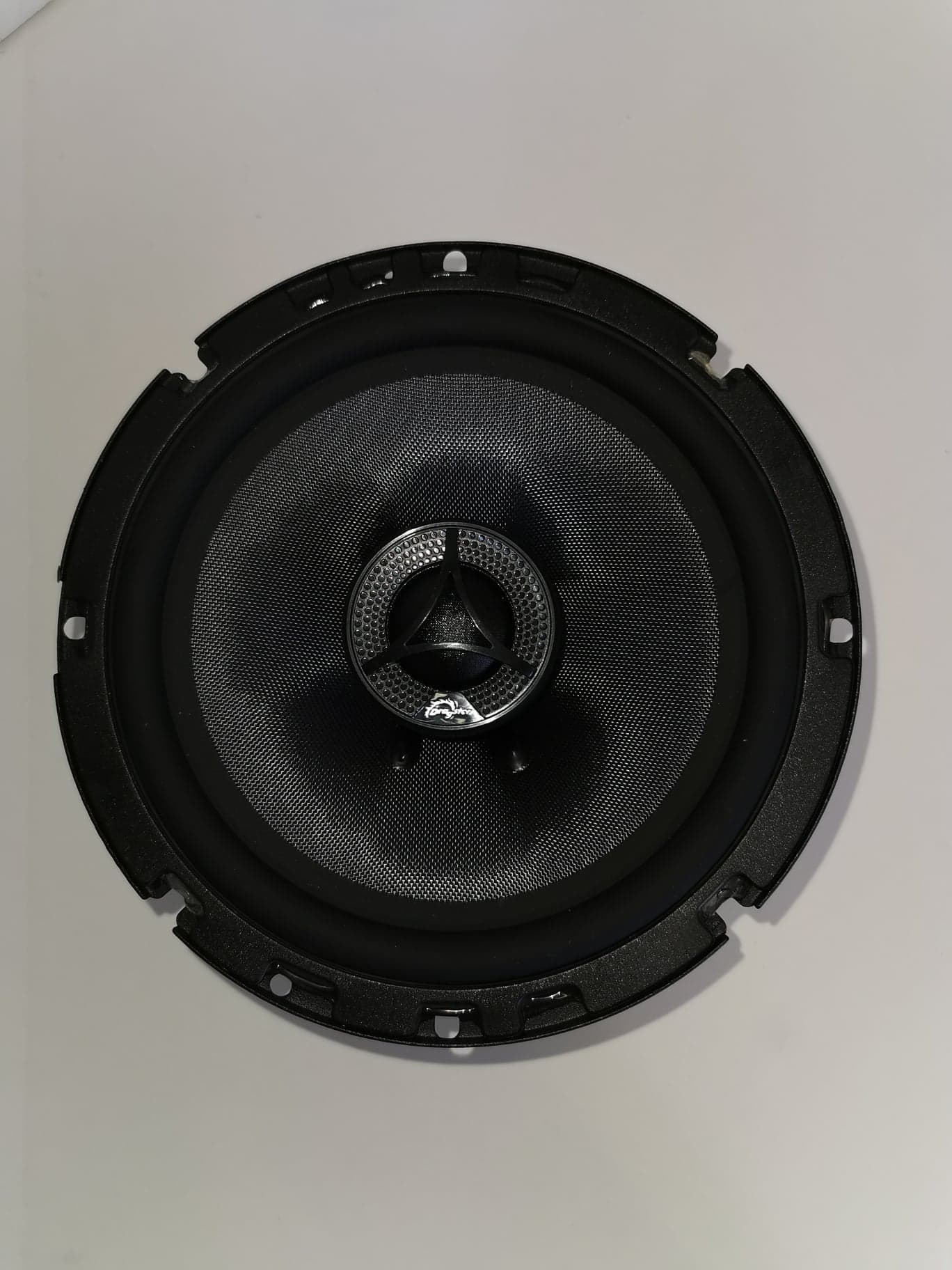

DRAGSTER DC-602
1 049 SEK
Overall Dimensions 165*74 mm
Nominal Power Handling 50 W
Transient Power 10ms 100 W
Sensitivity 89.3 dB
Frequency Response 58-20KHz
Cone Material Fiberglass Silk
Net Weight 1.1kg
Mounting depth 62mm
Par
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DC-602
Electrical Data
Nominal Impedance 4 Ohm
DC Resistance 3.2 / 3.6 Ohm
Voice Coil Diameter 30.5 / 25,4mm
Voice Coil Height 10,5 / 1.5mm
HE Magnetic Gap Height 5 / 2mm
Max.Linear Excursion 2.75 mm
Voice Coil bobbin Kapton / Aluminium
Voice Coil Wire Copper / CCAW
Number Of Layers 2 layers
Magnet System Type Hi. Flx Ferr. / Neodymium
BL Product 5,7
T-S Parameters
Suspension Compliance Cms 0.53
Mechanical Q Factor Qms 8,9
Electrical Q Factor Qes 0.53
Total Q Factor Qts 0.5
Moving Mass Mms 13,8
Eq.Cas Air Load( liters) VAS 14,66 Liter
Resonant Frequency Fs 58 Hz
Effective Piston Area SD 138 cm²
Filer och media
 | Bifogad fil |
| SPECS |
