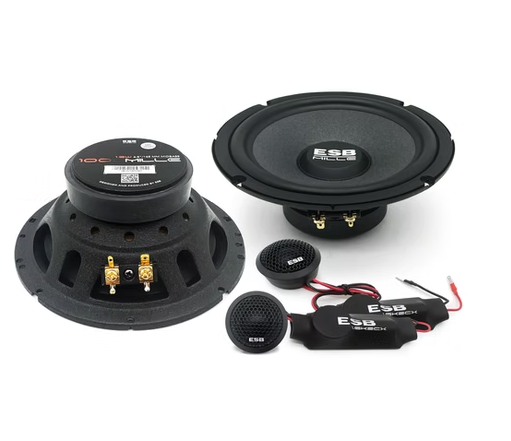

ESB 1.6K2X

ESB 1.6K2X

1 199 SEK
Lägg till i favoritlistan
2-Way Speaker System with 12dB Tw. Crossover The 1000 Series was conceived and designed to offer the ESB sound in affordable speakers, without sacrificing quality. The pressed paper cones for the woofers, the large voice coils able to handle high power and the tweeters with a silk dome and neodymium magnet, are just some of the features that make these speakers uncompromising. The 1000 Series tweeters use a silk dome for a smooth and natural sound. The dome is of extremely low mass and is much less susceptible to mechanical deformation. It provides a smooth, linear and very extended response. The high-grade neodymium magnet is optimized to get better efficiency and improve linearity, to ensure greater and better power management, and an increase in bandwidth and efficiency. The woofer cones, made of paper, are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration. The rubber surround ensures high damping and transversal stability, eliminating movements that could cause contact with the 25 mm voice coil and the magnet. The high grade 10 Oz ferrite magnet has higher performance and ensures great power management and higher efficiency.
Läs mer...

I lager: 5

  • Maila oss, troligen snabbaste supporten i branschen!
  • För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
  • VarumärkeESB

Beskrivning

Art.nr: ESB 1.6K2X

Technical Specifications Tweeter Type: Silk Dome Nominal Diameter: 1”/25 mm Woofer Type: Paper Cone Nominal Diameter: 6.5”/165 mm Nominal Impedance (Znom): 4 Ohms Continuous Power Handling: 90 W Peak Power Handling: 180 W Frequency Response: 50 - 21000 Hz Sensitivity: 89.0 dB @ 1W/1m 92.0 dB @ 2.83V/1m *Cont. and Peak Power @ High-Pass 80Hz - 12dB/Oct. TWEETER PARAMETERS Magnet: N-35 Neodymium VC Diameter: 25.4 mm DC Resistance (Re): 2.8 Ohms WOOFER PARAMETERS Magnet: Y-25 Ferrite VC Diameter: 25.5 mm DC Resistance (Re): 3.3 Ohms Mech. Compliance (Cms): 0.44 m/N Mechanical “Q” (Qms): 4.21 Electrical “Q” (Qes): 1.10 Total Speaker “Q” (Qts): 0.87 Moving Mass (Mms): 14.1 g Equivalent Compliance (Vas): 11.5 lt Free Air Resonance (Fs): 64 Hz
