FOR-X MAESTRO-75F
1 199 SEK
Fullrange
75mm CARBON FIBER CONE FULLRANGE
60W RMS POWER
180W MAX POWER
130-20K Hz FREQ. RESPONSE
6 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X MAESTRO-75F
Specifications
General Data
Overall Dimension: 77*51.3mm
Nominal Power Handling (AES): 60W
Transient Power: 180W
Sensitivity (1w/1m): 86dB SPEL
Frequency Response: 130~20kHz
Cone Material: Carbon Fibre
Electrical Data
Nominal Impedance: 6 Ohm
DC Resistance: 5.8 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 33.75mm
Voice Coil Height: 5.4mm
Magnetic Gap Height: 3mm
Max Linear Excursion: ±3.1mm
Voice Coil Former: Kapton
Number of Layers: 2
Magnet System: N35H
Efficiency: 0.164%
BL Product: 5.134 Na
Magnet Dimension: Φ31.5*Φ10*6.0mm

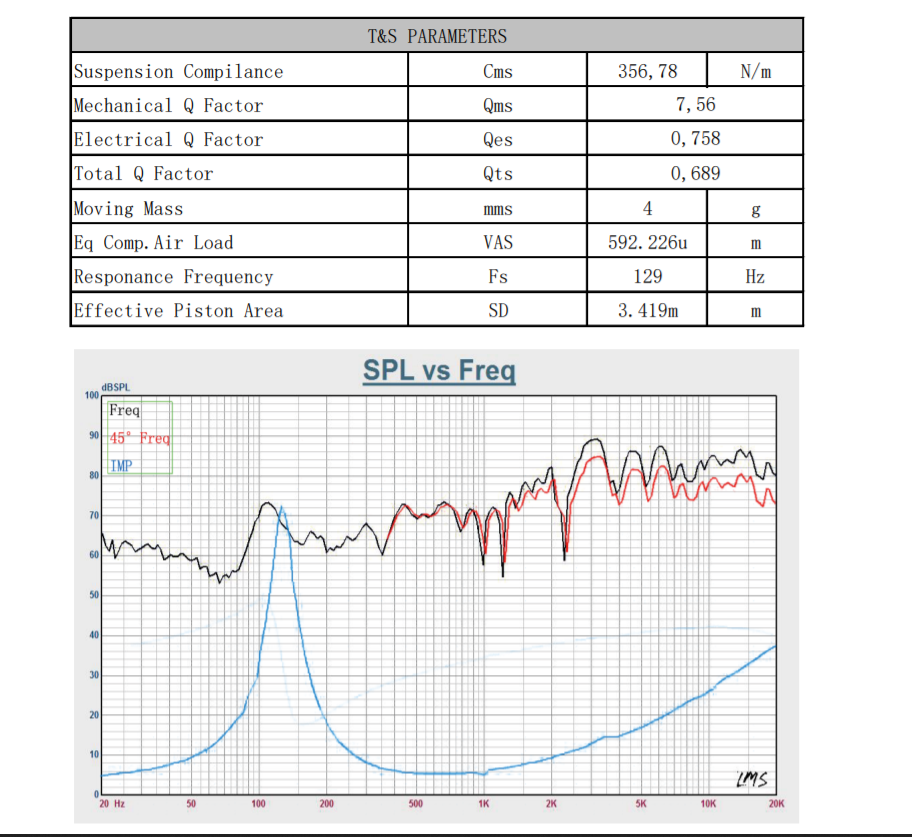

T&S Parameters
Suspension Compliance: 356.78 N/m
Mechanical Q Factor: 7.56 Qms
Electrical Q Factor: 0.758 Qes
Total Q Factor: 0.689 Qts
Moving Mass: 4g
Eq Comp. Air Load: 592.226u m
Resonance Frequency: 129Hz
Effective Piston Area: 3.419m
